AGRI Piping System

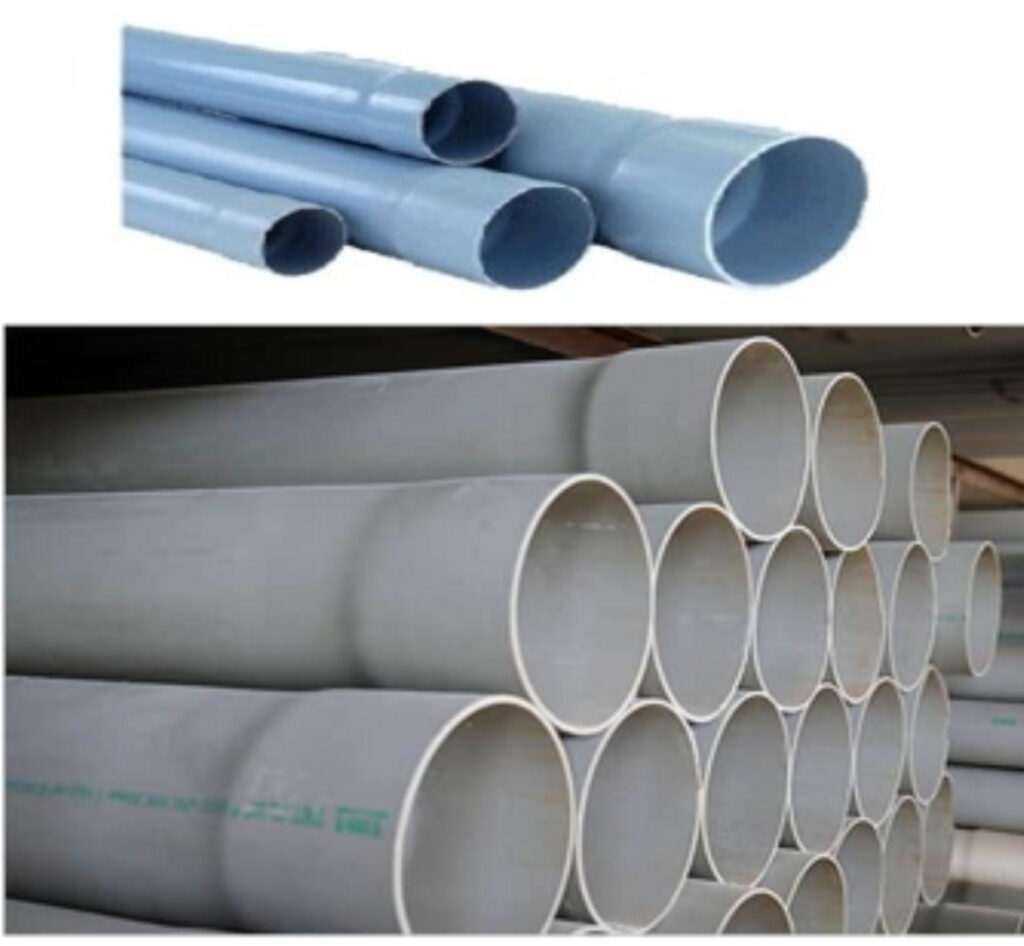

Sangam Pipes offers an exhaustive range of uPVC pressure pipes and fittings.
Pressure pipes manufacturing as per IS: 4985: 2021 Standard and are available in 40mm to 160mm in different pressure classes.
Pressure pipes are manufacturing two types of joint.
The pipes shall be classified based on their application as follows:
- Type A — Pipes for water supply; and
- Type B — Pipes for agricultural use.
Note: — The pipes shall be marked for their identification for applicable use/application.
(i) Solvent cement type joint.
(ii) Standard covers requirements for Plain as well as Socket-ended pipes.

Product Classification
Classification & Identification of AGRI Pipes
S No. | Particulars | Class 1 | Class 2 | Class 3 |
1 | Class of Pipes | 0.25 Mpa (2.5 kg/cm²) | 0.4 Mpa (4 kg/cm²) | 0.6 Mpa (6 kg/cm²) |
2 | Colour | The color of the pipes are in light grey | The color of the pipes are in light grey | The color of the pipes are in light grey |
3 | Available | 90 to 110 &160mm | 63 to 110mm&160 | 40 to 110mm&160 |
4 | Plain Ended Pipe | Effective length (Overall Length) | Effective length (Overall Length) | Effective length (Overall Length) |
5 | Socket Ended Pipe | Effective length after subtracting socket length | Effective length after subtracting socket length | Effective length after subtracting socket length |
6 | Solvent Cementing | Both Plain and bell mouth | Both Plain and bell mouth | Both Plain and bell mouth |
7 | Printing Color | All matters in RED | All matters in BLUE | All matters in GREEN |

Product Specifications
These pressure pipes and fittings are used for a variety of applications like:
Agriculture,
Irrigation,
Water supply,
Industrial process lines,
Swimming Pools,
Fire fighting.
These pipes are superior to Cast iron (C.I) or Reinforced cement concrete R.C.C Pipes. and number of advantages like:
⁍ Light weight
⁍ Easy & Fast Installation
⁍ Excellent corrosion & Chemical resistance
⁍ High flow rate
⁍ Long life and Economy
⁍ Easy & Fast Installation
⁍ Excellent corrosion & Chemical resistance
⁍ High flow rate
⁍ Long life and Economy
As Per IS 4985:2021 Testing Requirements
Quality Check
Test | Clause | Acceptance Test | Type Test |
Colour | 10.1 | ||
Visual | 10.1.1 | ||
Dimensional | 7.1.1.1, 7.1.1.2, 7.1.2, 7.1.4, 7.2 |
||
Reversion | 10.4 | ||
Density | 10.6 | ||
Sulphated Ash content | 10.7 | ||
Impact Strength | 11.2 | ||
Internal Hydrostatic Pressure Test ( 1 hr) | 11.1 | ||
Internal Hydrostatic Pressure Test ( 1000 hr) | 11.1 | ||
Vicat softening temperature | 10.5 | ||
Effect of Water | 10.3 | ||
Opacity | 10.2 |
